BOM¶
Electronics¶
Enclosure¶
| Part Description | Quantity | Required | Notes |
|---|---|---|---|
| Manta M8P V2.0 | 1 | Yes | |
| CM4 compatible SBC | 1 | Yes | |
| TMC2209 | 2 | Yes | For Z axis. If you only run 24v, you can use 4 of these instead of 2 TMC5160T |
| TMC5160T | 2 | If running 48V | Only for A/B motors! Required for 48V to A/B motors |
| Meanwell LRS-350-24 | 1 | Yes | At least 350W |
| Meanwell LRS-200-48 | 1 | No | At least 200W |
| Omron G3NA-210B-UTU | 1 | Yes | |
| 4010 Axial Fan | 2 | Yes | Reuse one of the fans from the enclosure |
| 4020 Blower Fan | 1 | Yes | Reuse the stock fan in the enclosure |
| IEC C14 F4 Fuse No Switch | 1 | Yes | You can probably re-use the stock one, I used a new one |
| KCD3 Rocker Switch w/ LED | 1 | Yes | You can probably re-use the stock one, I used a new one |
| Good-quality MicroSD | 1 | Yes | For the SBC and M8P |
Toolhead¶
| Part Description | Quantity | Required | Notes |
|---|---|---|---|
| CAN/USB Board (compatible with your extruder) | 1 | Yes | I recommend a USB-based board, like the EBB36 Gen 2 |
| EVA3 or E34M1 compatible hotend | 1 | Yes | I recommend a Rapido 2/2+/2F with UHF |
| EVA3 or E34M1 compatible extruder | 1 | Yes | An Orbitor 2.5 or BTT Nebula is a good choice |
| Bed leveling probe | 1 | Yes | Cartographer or Beacon is recommended, but requires soldering wires. A BLTouch also works |
Other¶
| Part Description | Quantity | Required | Notes | | BigTreeTech SFS 2.0 | 1 | No | Not strictly required, but required if you want filament runout |
Printed Parts¶
EVA3 Parts
This does not cover all of the printed parts for the EVA3, only the Ender 5 Max specific parts! For the rest of the parts, refer to the EVA3 documentation and E34M1 documentation. Depending on other parts, you may need to find printed parts on Printables. Recommended printed parts for probes will be listed here.

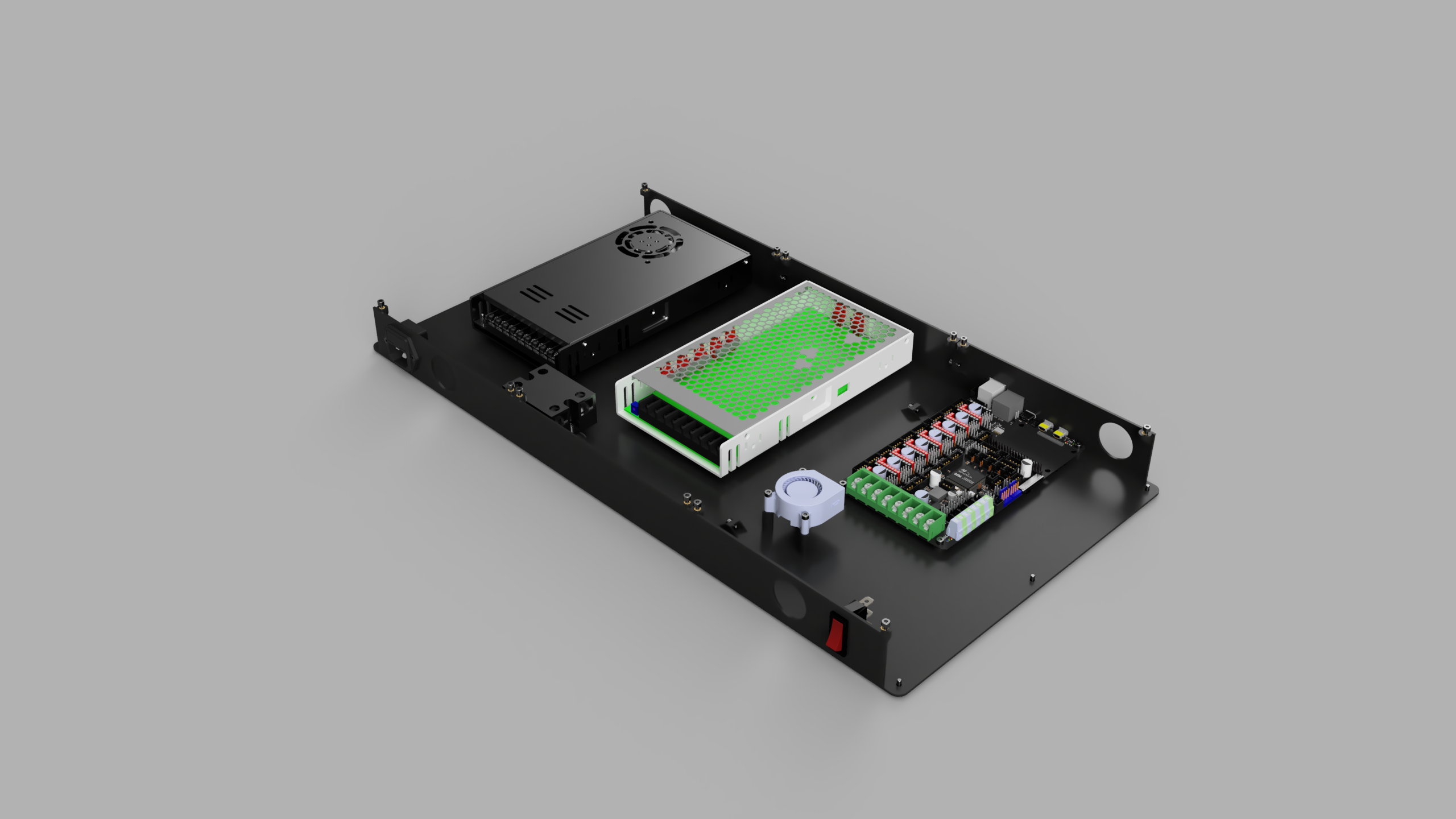

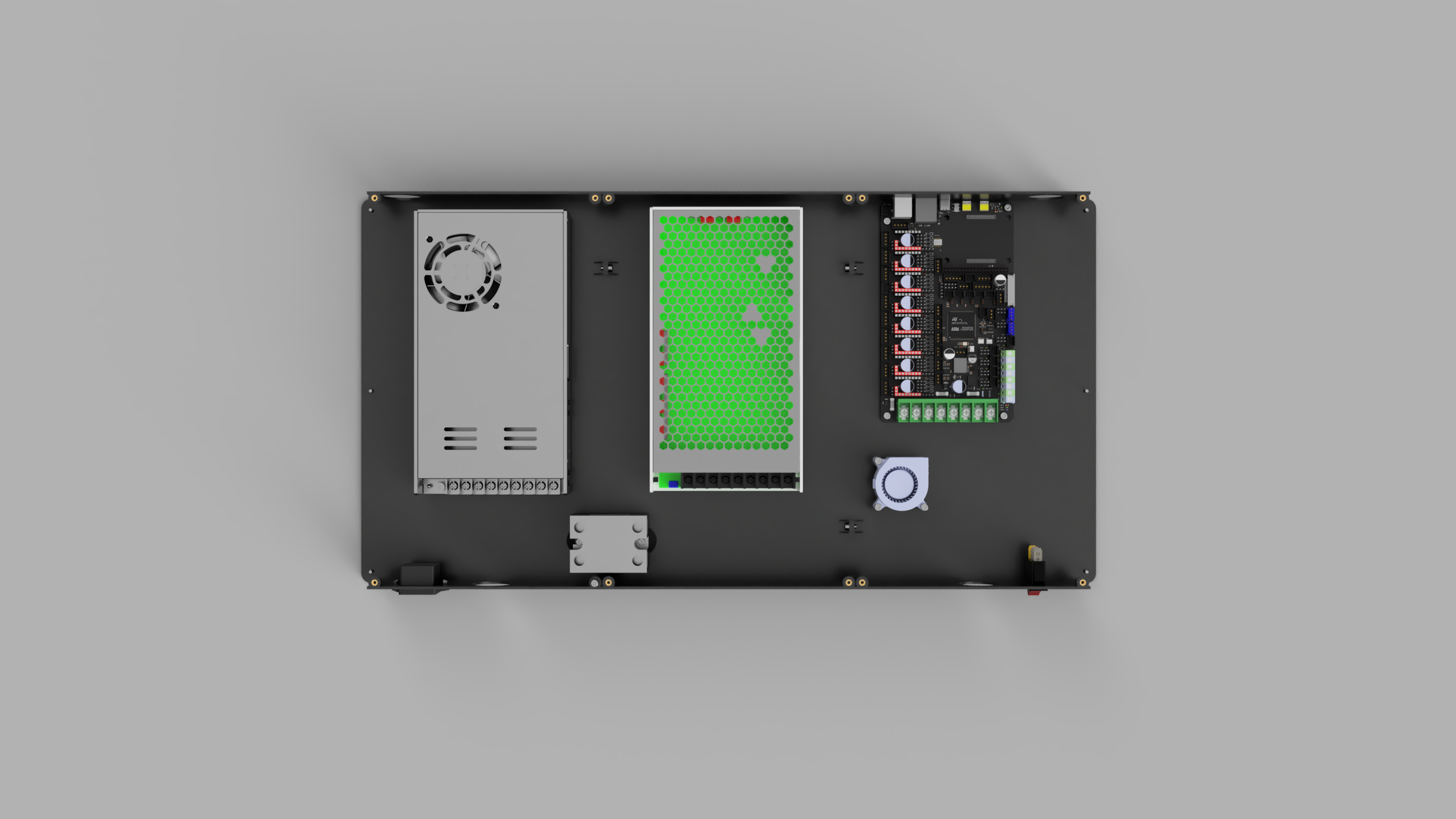

Electronics Enclosure¶
Materials
The foot extension can be printed in any non-flexible material. However, the electronics enclosure itself must be printed in HT-PLA/PETG/ABS/ASA if you plan on printing high-temp materials on the printer! If you don't, regular PLA is more than enough
| Part Name | Quantity | Required | Download | Notes |
|---|---|---|---|---|
| Foot Extension | 4 | Yes | Foot Extension x4.stl | Print with 30-40% infill, this is a heavy printer! |
| LRS-350-24 | 1 | Yes | LRS-350-24.stl | |
| LRS-200-48 | 1 | No | LRS-200-48.stl | Only required if doing 48V for A/B motors |
| Manta M8P | 1 | Yes | Manta M8P.stl | |

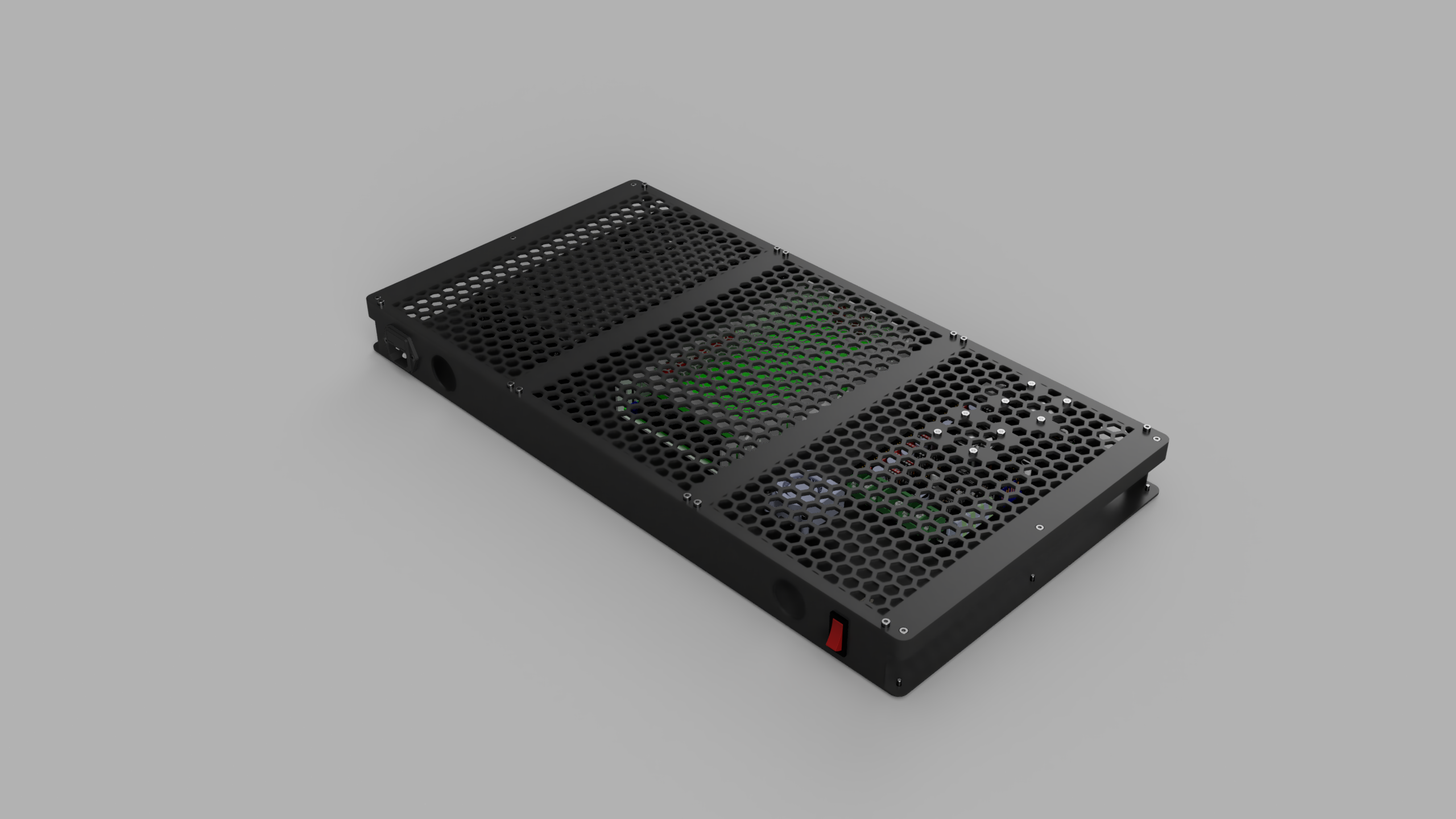

| Bottom Mesh - LRS-350-24 | 1 | Yes | Bottom Mesh - LRS-350-24.stl | For safety, please print this |
| Bottom Mesh - LRS-200-48 | 1 | Yes | Bottom Mesh - LRS-200-48.stl | For safety, please print this |
| Bottom Mesh - Manta M8P | 1 | Yes | Bottom Mesh - Manta M8P.stl | Required for mounting SBC and STM32 cooling |
Ender 5 Max parts for EVA3¶
Printing Instructions
Before printing any EVA3 parts, you must calibrate the ABS/ASA filament you are using to make sure that the parts have the right strength. Also, make sure you follow the EVA3 printing instructions
Credits
All credit goes to Goowah in the SimpleAF Discord for designing the EVA3 parts for Ender 5 Max. This project wouldn't have been possible without these parts
| Part Name | Quantity | Required | Download | Notes |
|---|---|---|---|---|
| E5M EVA Back Insert | 1 | Yes | E5M EVA Back Insert.stl | |
| E5M EVA Front Insert | 1 | Yes | E5M EVA Front Insert.stl | |
| E5M EVA Top Insert | 1 | Yes | E5M EVA Top Insert.stl | |
| E5M EBB36 Orbitor Mount | 1 | Yes | E5M EBB36 Orbitor Mount.stl | |
| EVA 3 Beacon Probe Default/HF | 1 | No | EVA 3 Beacon Probe Default/HF | Works for Carto V3, highly recommended. Requires soldering |
| EVA 3 Beacon Probe UHF | 1 | No | EVA 3 Beacon Probe UHF | Works for Carto V3, highly recommended. Requires soldering |
Other parts¶
| Part Name | Quantity | Required | Download | Notes |
|---|---|---|---|---|
| E5M SFS Mount | 1 | No | E5M SFS Mount.stl | Not required but highly recommended for filament runout and cable management |
Fasteners and Inserts¶
EVA3 Parts
This does not cover fasteners required for the EVA3 toolhead. Please refer to EVA3 documentation for fasteners for the toolhead
| Part Name | Quantity | Required | Notes |
|---|---|---|---|
| M3x5x4 Heat-Set Inserts | 21 | Yes | Voron size, CNCKitchen has good ones |
| M3 Nuts | 10 | Yes | For C14 Inlet and 4010 fan mounts |
| M3x4 SHCS | 4 | Yes | For M8P |
| M3x6 SHCS | 28 | Yes | For mounting SSR, Meshes, main body to printer, and combining main parts |
| M3x8 Countersunk | 2 | Yes | For C14 inlet, can use SHCS instead if necessary |
| M3x16 SHCS | 17 | 17 | For fans and mounting meshes to printer frame |
| M4x8 SHCS | 8 | Yes | For power supplies, only need 4 if doing 24V only |
| M4x35 SHCS | 4 | Yes | For mounting the feet extensions to raise the printer |
